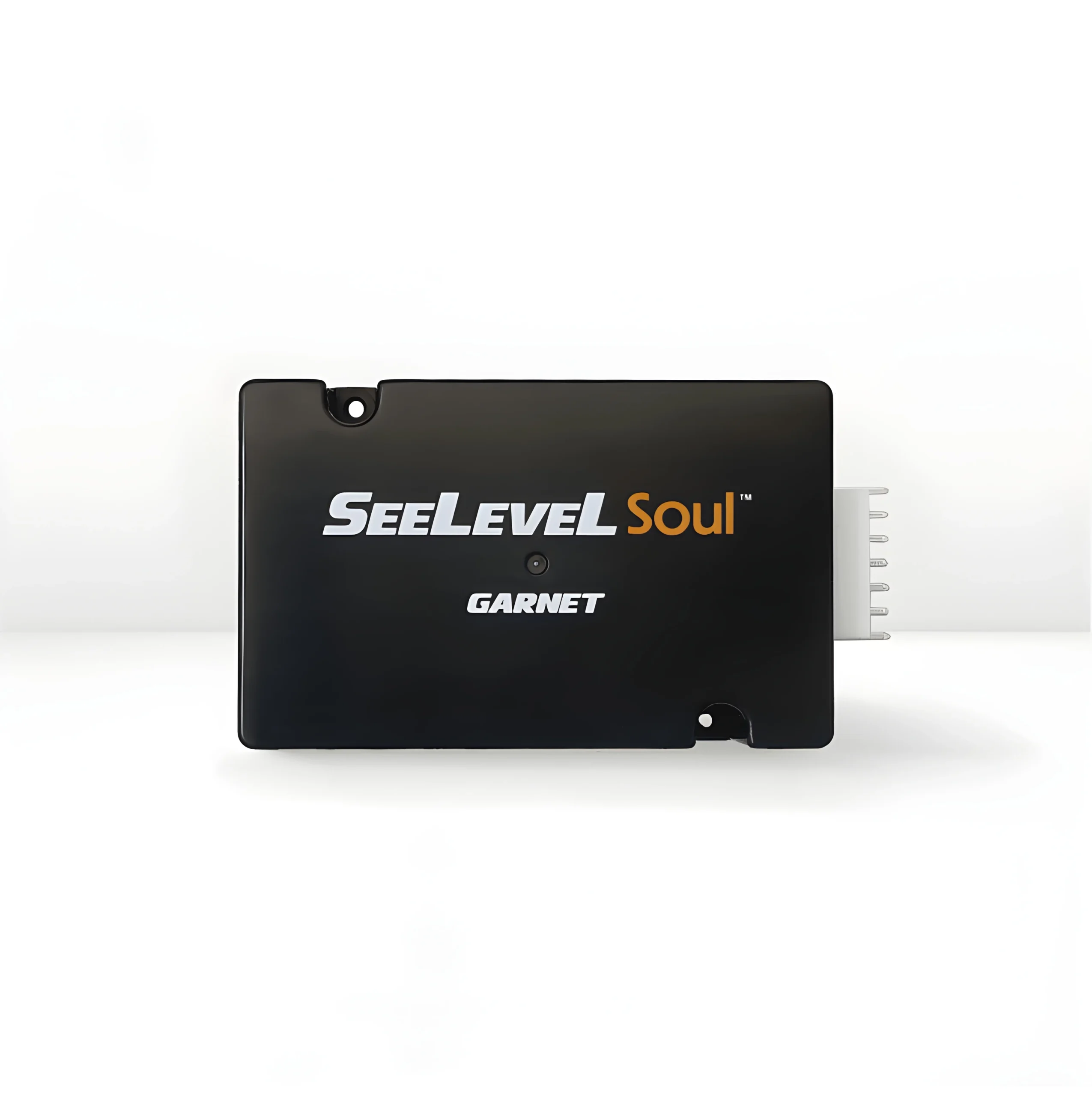

SeeLeveL Soul

The SeeLeveL Soul is a Data Link Module that collects tank level information from the SeeLeveL senders and transmits it to a multiplex system through the RV-C bus. With no visible display, it is designed to be concealed inside the RV so OEMs can avoid using up valuable wall or cabinet space.

SeeLeveL Soul Features

Upgrade your RV with the SeeLeveL Soul for advanced monitoring of up to seven water tanks, including support for LPG sensors. It connects easily to the RV-C bus using either the CAN outputs or the standard 4-pin connector, giving you flexible installation options. Configuration is simple through the Soul User Interface or by choosing a pre-configured device.

Includes: (1) data link module, (1) pigtail
Monitors: Up to seven tanks (Fresh, Grey, Black, Fresh 2, Grey 2, Black 2, Grey 3), and Battery voltage
LPG: Connects to an existing LPG sensor
Senders: Compatible with the 710-AR2, 710-ES3, AND 710-SS2 senders. Senders sold separately.
Other: RV-C Interface multiplex compatible, Configures through the SeeLeveL Soul user interface

Details

The SeeLeveL Soul™ Data Module works with SeeLeveL™ Senders to deliver tank level readings over the RV-C communication bus. It receives data from the sender panels through a single two-conductor wire. The Soul module supports three sender models—710-AR2, 710-ES3, and 710-SS2—each designed for different tank sizes. These senders can be double-stacked and can accommodate tank heights ranging from 8.9 cm to 86.4 cm . They will also monitor up to seven tanks, making them suitable for a wide range of applications. See manual for more information.
